GPS Antenna Module
SIM39EA is a standalone L1 frequency GPS module with embedded patch antenna. Designed with MTK’s high sensitivity navigation engine, it allows you to achieve the industry’s highest levels of sensitivity, accuracy, and Time-to-First-Fix (TTFF) with lowest power consumption.
SIM39EA

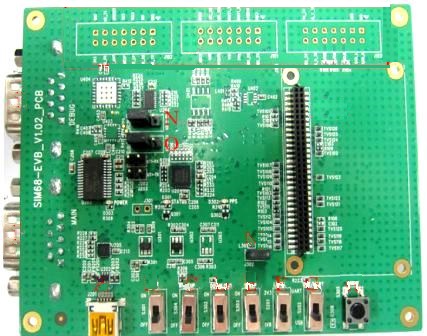

SIM68 EVB KIT
Features
- Dimensions: 16*16*6.2mm
- Weight: 5.8g
- Support EASYTM self-generated orbit prediction
- Support EPOTM orbit prediction
- Support AGPS
- Support SBAS ranging (WAAS, EGNOS, GAGAN, MSAS)
- Serial interfaces: UART
- Protocols: NMEA, PMTK
- Receiver type: 22 tracking/66
- Max. update rate: 10Hz
- Tracking:-165 dBm, Reacquisition:-160 dBm, Cold starts:-147 dBm
- Operation temperature: -40℃~+85 ℃
- Power supply 2.8~4.3V
- Certifications: RoHS\REACH\CE(RED)
