AFRC616 - RECORDING CONTROLLER

The AFRC616 is the powerful audio processor with high performance audio analog-to-digital converters (ADCs) and digital-to-analog converters (DACs). It is a fully integrated solution offering high performance and unparalleled integration with analog input, digital processing and analog output functionality required to perform demanding audio/voice applications. High quality audio/voice systems with lower bill-of-material costs can be implemented with the aFRC616 with its integrated analog data converters and full suite of quality-enhancing features such as sample-rate convertor.

Features

Operating voltage range: 3.0V ~ 6.5V
All function off standby Current: 1uA (Typical)
Support 27 GPIOs
2 hardware SPI interface
Powerful 16-Bits Digital Audio Processor.
8bits-MCU with 16bits-DSP engine as 16-bits audio processor
Selectable PWM or DAC voice output with 16-bits resolution
Support 6KHz ~ 48KHz sample rate
Build-in 12K bytes flash program memory with 20000 times erase/program
Build-in 8K bytes SRAM
Support external SPI flash for voice data storage
Minimum External Components
Nonvolatile Flash Memory Technology
Watch dog timer (WDT)
Configurable analog interface
DatasheetAFRC616 Specification

aFRC616M4-E2.1 (SPI 4M)

Durations: 42 sec ~85sec
Data Compression: 96k~48k bps
Maximum Section: 8
Support recording of 1,2,4 or 8 sections
Support external oscillator to adjust sampling rate

aFRC616M32-C1.1 (SPI 4M)

Durations: 680 sec
Data Compression: 48k bps
Maximum Section: 1024
Support CPU interface, controlled by 5 pins

Duration

Here is an example of what the duration will be with 12Khz sample rate.

Compress	External Memory
	SPI 4M	SPI 8M	SPI 16M	SPI 32M	SPI 64M	SPI 128M	OTP 1G
4bit adpcm	85 sec	170 sec	341 sec	682 sec	1365 sec	2730 sec	6 hr
8 bit u-low	42 sec	85 sec	170 sec	341 sec	682 sec	1365 sec	3 hr
16 bit pcm	21 sec	42 sec	85 sec	170 sec	341 sec	682 sec	1.5 hr

For other features and options, please contact us.

Demo Board

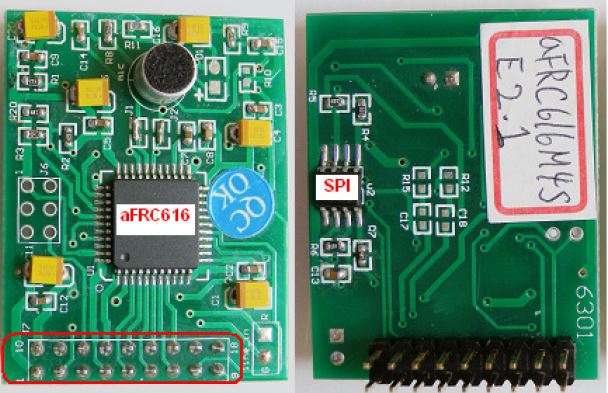

AFRC616M4S-E2.1
User Manual

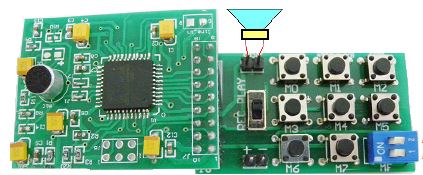

AFRC616M4F-E2.1
User Manual

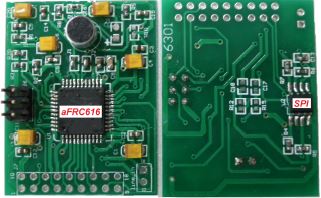

aFRC616M32S
User Manual

FAQ

Q - What is the different between AFRC616 and the APR33A3 series? The AFRC616 is a two-chip solution. It uses an external memory to store the sound data. You can choose different size of memory, but keep in mind the sample rate and the compress method will affect the total duration. Q - Can I use my own SD Card? No. Please use the SD card provided in the package. All data in the SD will be erased every time you record new sounds. Q - Can I have SD of different storage size? Yes, please indicate the size you need when placing the order. Q - I want to have other functions. How can I do that with the writer? Please contact us and let us know your requirements.
