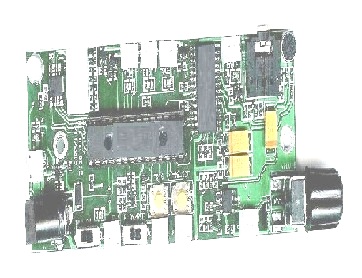

Action Board II - Recordable Sound Module with LED

The Action board II is a re-recordable sound module with customizable LED patterns. You can record your own sound and select a LED pattern from a list of preprogrammed LED patterns to be shown while playing the sound. Optional accessories come with 30cm long cable. It can be used for toys, educational devices, amusement parks, school projects, home projects, DIY projects, mini trains, Christmas decorations, Halloween costums, robotics and more.

Features

Volume control
Rechargeable battery circuit
Short circuit protection
External On/Off power switch
On board and external trigger or selector
Can connect to other outputs
Can connect to other triggers like motion sensors, LDR
7-seg. display indicator for sound track or LED patterns
Auxiliary connector for other output such as relay
Dimension: 3.94 x 1.57 in

LED and Voice Features

3 LED connectors
8 tracks for sound and LED patterns
Preprogrammed LED patterns
Selectable LED patterns to match sound
Customizable patterns and functions by manufacturer
8 tracks for sound to match LED patterns
Each sound duration up to 85s
Total sound duration up to 680s
Record by audio jack or microphone

AB2-KIT

Action Board II
with all the accessories.

Price: $75.00

AB2

Action Board II
Sound module

Price: $45.00

ABNN18

Programmed IC for LEDs

Price: $4.00

AB1BH650

Battery holder &
18650 Lithium Battery

Price: $13.50

AB1UBPWR

USB Charging cable
with power adapter

Price: $12.50

FAQ

Q - How many sound can I record? You can record up to 8 sounds either with microphone on board or with line-in audio cable. Q - I only want the sound not the LEDs. How do I do that? You can simply unplug the LED cables and press the trigger buttons to play just the sound. Q - Can I use other triggers? Yes, you can use light sensor, motion sensor or any other type. Q - How long does the battery last? It depends on how often you play the sound and LEDs. Keep the power button in OFF when not in use can help saving battery consumption.
