RECORDING VOICE IC

The APR9301 and APR6016 voice IC offer single-chip and two chip solid-state storage capability and require no software. It provides high-quality recording and playback. It is ideal for portable voice recorders, toys, and many other consumer and industrial applications. The small size, non-volatility, low power consumption, and ease-of-use provide cost effective solution to voice related applications.

Features

• Random access of multiple fixed-duration messages
• Sequential access of multiple variable-duration messages
• Automatic power-down, Standby current: 1 uA typical

APR9301

• Duration: 16~30 sec
• Phrase: 1
• Voltage: 4.5V ~ 6.5V
• Package: DICE / DIP (600 MIL) / SOP 28 pins
• Datasheet: APR9301 Specification

APR6016

• Duration: 8~16 min
• Phrase: 1280
• Voltage: 2.9V ~ 3.3V
• Package: DICE / DIP (600 MIL) / SOP 28 pins
• Datasheet: APR6016 Specification

Demo Board

APR9301
Demo board

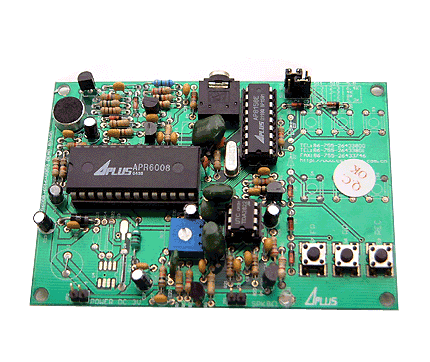

APR60XX
Demo board

×

---

FAQ

Q - Can I have a circuit that has both the OTP chip and the re-recordable together? The re-recordable ICs can work in parallel to the OTP chips. It can work with a common output. If you wish to use a common power supply, use the 5V OTP chips along with the re-recordable. Q - How can an OTP and re-recordable function in parallel? The OTP has an active-high functioning circuit, while re-recordable is an active-low circuit. Hence, the same control signal can be used to control both the ICs.
