Features:

• 16-bit DSP with subband compression.
• Up to 100,000 time for ROM program/erase cycles.
• 22~88 min multi-time programmable (10k~38k sampling)
• In-Circuit program
• 16bit DAC, 12bit PWM
• Support CPU mode, key mode, MP3 mode
• Combination of voice building blocks to extend playback duration.
• Voice section trigger options: Edge / Level; Hold / Un-hold; Retrigger / Non-retrigger.
• Built-in oscillator with fixed Rosc, software control sampling frequency
• 2.7V ~ 3.6V single power supply and < 15uA stand-by current.
• PWM Vout1 and Vout2 drive speaker directly.
• D/A COUT with ramp-up ramp-down option to drive speaker through external BJT or amplifier.
• RSTB provides external controlled reset to the chip

Specifications

• Voltage: 2.7v ~ 3.6v
• Phrase: Max 1024
• Output: DAC / PWM
• Package: DIP/SOP 28 pin, LQFP44
• I/O: 7, 4I + 11 I/O
• Sample Rate: 6 ~ 20 Khz
• Datasheet: Download

Programming Tool

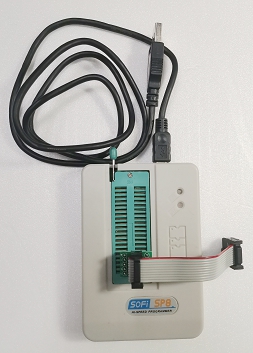

SP8-A
User Guide
Software

Demoboards

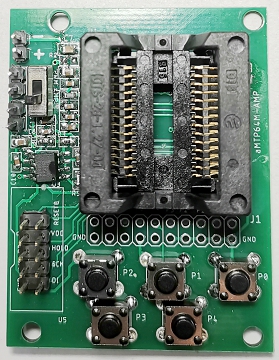

aMTP64M-AMP

aMTP64M-DBS
