LCD Displays

Add a display to make your products more user friendly. Choose between different lines numbers and numbers of characters, either Character type or Graphic types. Each type allows you to change background light and color. Download the numbering system file and the product list to see all the possible types and models.

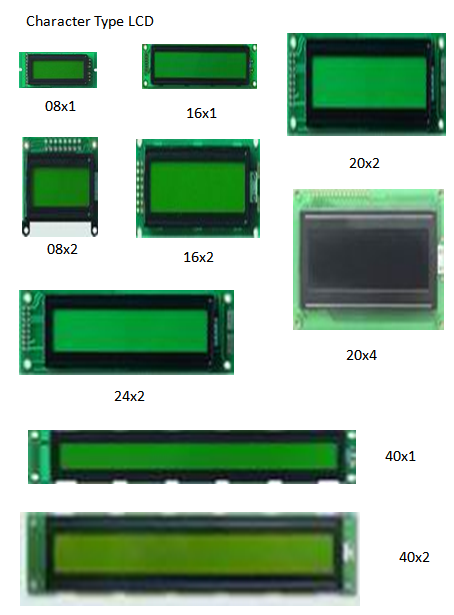

Character Type

LCD display with 8, 16 or 20 char per line, and 1, 2 or 4 lines. Each type has different background color and light settings.

• 8 CHARACTERS X 1 LINE: Datasheet
• 8 CHARACTERS X 2 LINES: Datasheet

• 16 CHARACTERS X 1 LINE: Datasheet
• 16 CHARACTERS X 2 LINES: Datasheet
• 16 CHARACTERS X 4 LINES: Datasheet

• 20 CHARACTERS X 2 LINES: Datasheet
• 20 CHARACTERS X 4 LINES: Datasheet
• 24 CHARACTERS X 2 LINES: Datasheet

• 40 CHARACTERS X 1 LINE: Datasheet
• 40 CHARACTERS X 2 LINES: Datasheet
• 40 CHARACTERS X 4 LINES: Datasheet

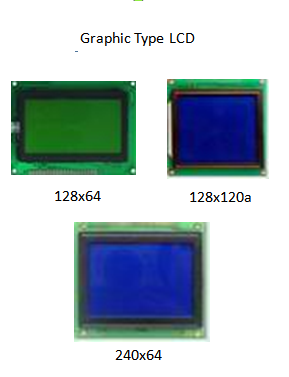

Graphic Type

Graphic LCD display from 122 to 240 dot matrix and different background color and light settings.

• 122 X 32 DOT MATRIX: Datasheet

• 128 X 64 DOT MATRIX: Datasheet
• 240 X 64 DOT MATRIX: Datasheet

• 128 X 128 DOT MATRIX: Datasheet
• 240 X 128 DOT MATRIX: Datasheet

See Also

Download the numbering system file to see all the possible types and models. You can also add voice and audio to enhance the functionalities of your products.
